Brief introduction of 10L Rotary Evaporator:
A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. Rotary evaporator is most often and conveniently applied to separate "low boiling" solvents such as n-hexane or ethyl acetate from compounds which are solid at room temperature and pressure. However, careful application also allows removal of a solvent from a sample containing a liquid compound if there is minimal co-evaporation (azeotropic behavior), and a sufficient difference in boiling points at the chosen temperature and reduced pressure.
The Zhengzhou Greatwall 10L (evaporating flask capacity) series rotary evaporators come with all PTFE valves for solvent-resistant operations. We also lowered the height of the height of assembled unit, for easy installation and ease of use and storage. Also come with them are vertical glassware and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.
Rotary evaporator features a specially designed motor and worm gear to provide constant rotation at speeds from 10 to 130 rpm. As the flask containing the solvent is rotated, it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation that is effected by the gentle heating from the water bath. The rotating system is fitted with a special seal that allows the apparatus to be placed under vacuum,
Digital water bath operates from ambient to 99°C (210°F) with PID temperature control stepping at 0.1°C. Heating coils are located directly inside the pan for the most efficient heating possible. A built-in overheat protector will shut down power, should the controller fail.

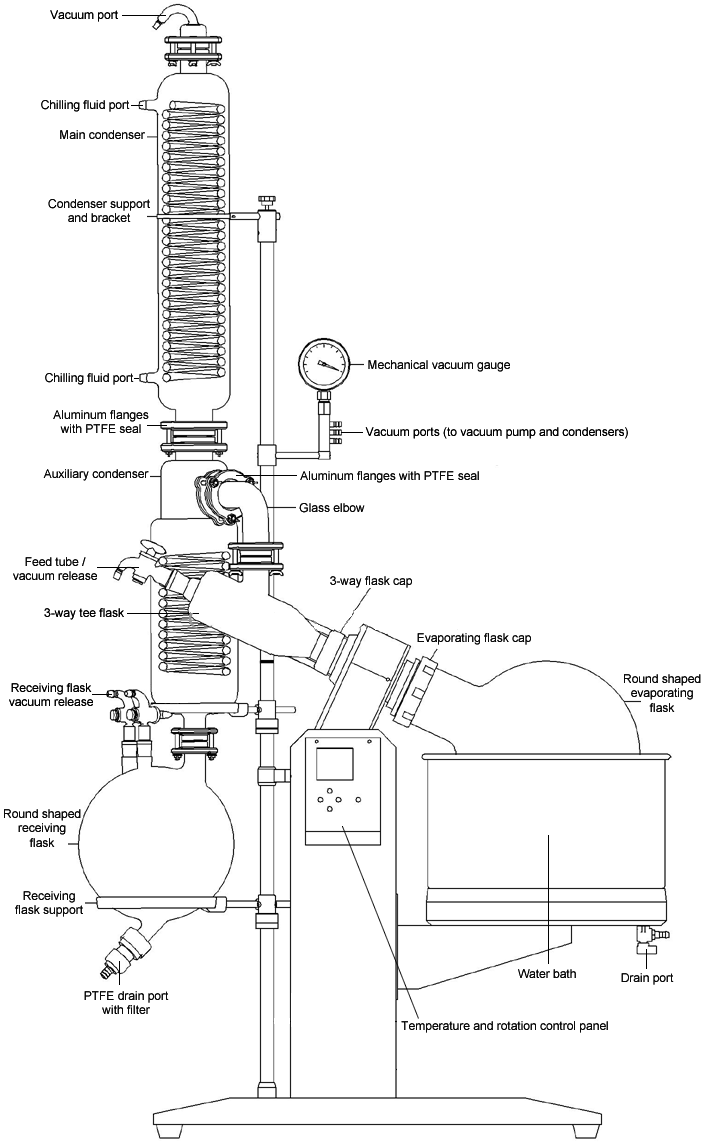

Standard Glass ware Set includes 10 liters round-bottomed evaporating flask, 5 liters round-bottomed receiving flask, and vertical condenser. Rotary Evaporator with vertical glass condenser are great for distillation of solvents with higher boiling points.
Features of 10L Rotary Evaporator:
- Solvent-resistant PTFE and Viton gaskets ensuring long time operation.
- Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
- Downward-condensing vacuum connection design ensures safe vacuum operation.
- Motorized water bath lifting for precise control.
- Easy, straight-forward visual operation with digital speed and temperature display.
- PID temperature controller ensures accurate temperature control is maintained.
- One year warranty and life-long service support.
Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.
Specifications of 10L Rotary Evaporator:
Certification:
ISO9001:2008

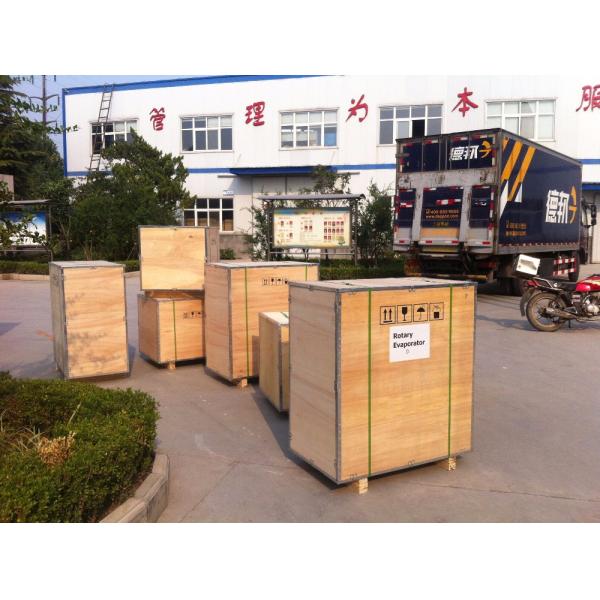

Packing:
Office block:
Workshop:
Exhibition:
|
|

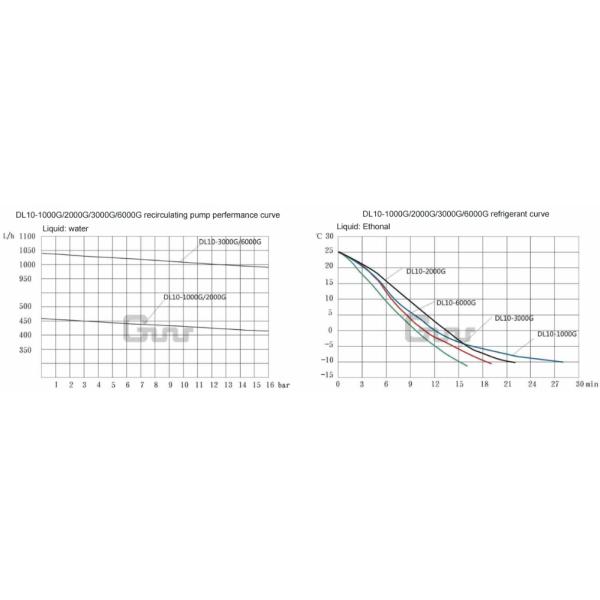

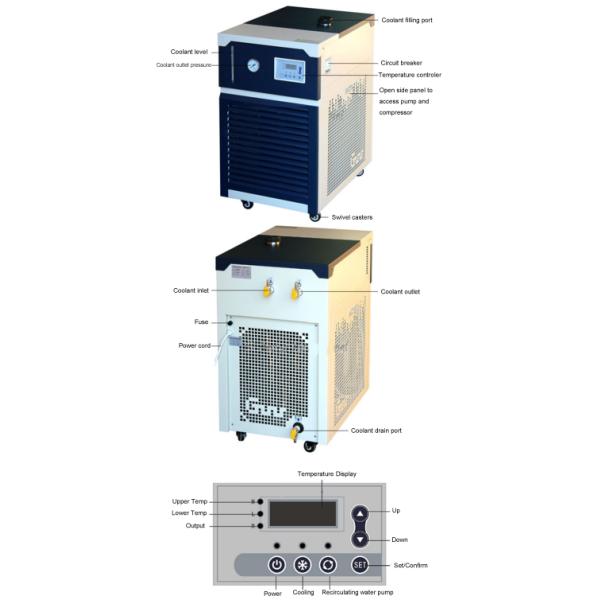

Zhengzhou Greatwall 10L Rotary Evaporator with Chiller & Solvent Recovery Pump Images
|
